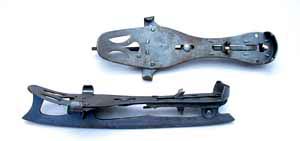

Fig.2: German hockey skate, 4th quarter 19th century The blades of these skates function as a lever to clamp heel and forefoot simultaneously by stepping on the platform. The correct positions of the clamping mechanisms can be set in advance at home. Manufacturer: unknown Mark: none Technical data: total length: 30 cm; platform: length x width x height: 27 x 8-11 x 4.1 cm; blade: height x width: 15 x 6 mm, with gutter; weight: 585 g. |
|
Fig.3:
English club skate, 4th quarter 19th century These skates have a double functioning thumbscrew mechanism under the platforms. By turning the screw first the heel is fastened lengthwise and then the forefoot is fastened athwart. Manufacturer: Eduard Engels, Remscheid (GER) Mark:  Technical data: total length: 31 cm; platform: length x width x height: 26 x 8-10 x 4.2 cm; blade: height x width: 15 x 6 mm; weight: 540 g. |
|
